STANDARD DRIVING EQUIPMENT

• Mercedes-Benz® Sprinter 3500 chassis with 170 in. wheelbase
• GVWR- 11,030 lb.
• GCWR- 15,250 lb.
• V-6 Turbo 188 HP diesel engine with electronic fuel injection and 325 ft.-lb. torque
• 7-speed automatic transmission
• 220 amp alternator
• E-rated highway tires- 215/85R16
• Front and rear disc, 4-wheel anti-lock brakes
• 5,000 lb. rear hitch receiver with dual connector 7-pin plug
• 12V chassis battery
• 26.4 gal. fuel tank
• 5.8 gal. DEF tank
• Driver and passenger airbags
• Power windows and door locks
• Tilt steering wheel
• A/C and cruise control
• Auxiliary start switch
• Privacy curtains for cab area

STANDARD EXTERIOR EQUIPMENT

• StrongholdVBL™ roof, floor and sidewalls
• Bead-foam insulation (R-24 max roof, R-9 max floor, R-5 max walls)
• TPO laminated roof
• Fiberglass running boards
• Fiberglass exterior walls with vinyl graphics
• Electric stabilizer jacks
• Slideout awning(s)
• Entrance door with industry’s largest travel-view window
• Electric-powered entrance step with integrated house battery compartment
• 12V house battery
• Exterior utility center
• Winterization drain system
• Black tank flush
• Outside shower
• 12V demand water pump
• Onan® 3,600W LP generator
• Transfer switch with reverse polarity protection
• 30 amp electrical service
• Solar prep
• 12.2 gal. propane tank (41 lb.)
• LP quick-connect hookup
• Third brake light
• 4 in. bumper tube with sewer hose storage

STANDARD INTERIOR EQUIPMENT

• 83 in. interior ceiling height with padded vinyl ceiling
• High-intensity, LED ceiling lights
• LED-lit slideout fascia
• Hardwood cabinet doors and drawers
• Ball-bearing drawer guides
• Jayco-exclusive, easy-operation legless dinette table (24R)
• U-shaped dinette with stow away pedestal legs (24L)
• 12V USB charging station in dinette area
• 2-point lap safety belts in all designated seating locations
• Pleated blackout shades
• 13,500 BTU A/C
• 30,000 BTU auto-ignition ducted furnace
• 6 gal. gas/electric water heater and water heater bypass
• Powered roof vent in living area with wall switch
• LED HD Smart TV
• Prep for satellite dish
• Cable TV hookup with RG-6 coax
• Digital antenna with signal booster
• 2-burner, drop-in cooktop with flush cover
• Convection microwave
• Stainless steel sink with wooden cover/cutting board
• LED-lit pressed countertops
• Flip-up countertop extension (select models)
• Decorative kitchen backsplash
• Water filtration system
• Shower with decorative surround and skylight
• Stainless steel bathroom sink
• Toilet with foot flush
• Powered roof vent in bathroom with wall switch

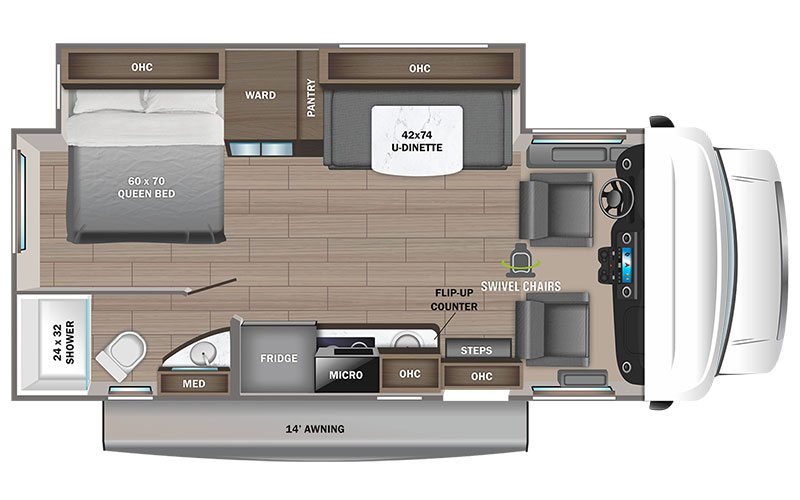

• Queen-size bed with bedspread (24L)

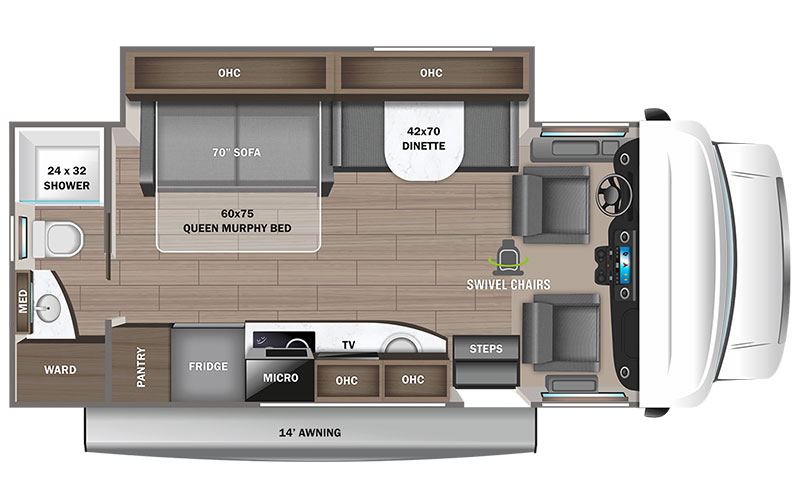

• Queen-size power Murphy bed (24R)

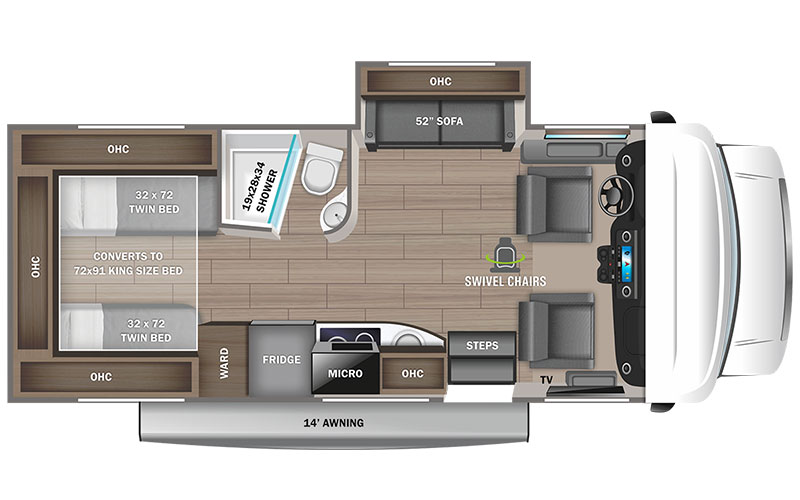

• (2) twin-size beds (24T)
• USB port in bedroom
• Bedroom TV prep
• Large wardrobes
• Overhead bunk with 750 lb. capacity
• Smoke alarm
• Carbon monoxide detector
